Set of Soft-Close Drawer System, MEDIUM, H: 5-9/16 inch, White

Set of Soft-Close Drawer System, MEDIUM, H: 5-9/16 inch, White

$25.61 USD
$41.99 USD $25.61 USD
Sale Sold out
Shipping calculated at checkout.
Length
For Wood & Furniture Construction · 88 lbs (40 kg) Load Capacity

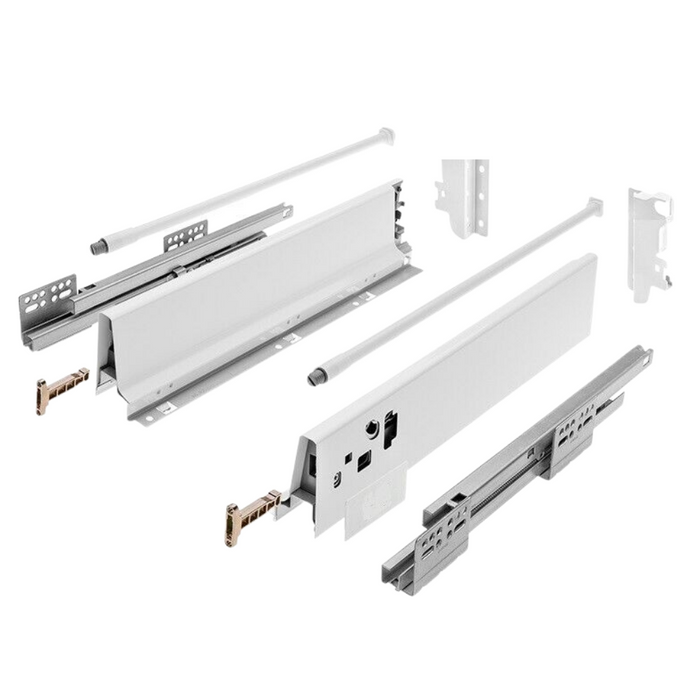

1 Set Soft Close Drawer Slides, MEDIUM, H: 5-9/16 in (142 mm), White

This medium-height soft close drawer system features a 5-9/16 in (142 mm) side wall height and a load capacity of up to 88 lbs (40 kg). Thanks to the integrated full extension and soft-closing mechanism, the entire contents move silently and remain fully accessible.

  • Additional MechanismSoft-Close System
  • Full ExtensionYes
  • Max Weight88 lbs (40 kg)
  • Height5-9/16 in (142 mm)
  • MaterialSteel
1 Set Soft Close Drawer Slides, MEDIUM, H: 5-9/16 in (142 mm), White
  • 5-9/16 in (142 mm)Height

5-9/16 in (142 mm) Side Height for Stable Drawer Guidance

This soft close drawer system made of durable steel combines an 88 lbs (40 kg) load capacity with integrated damping and smooth full extension functionality.

  • Integrated Full Extension: Ensures complete visibility and fast, easy access to all contents inside the drawer.

  • Damped Soft-Close Mechanism: The soft close system cushions the drawer, pulling it softly and silently shut in the final inches.

  • High Load Capacity up to 88 lbs (40 kg): Sturdy steel construction guarantees excellent stability even under heavy loads.

  • Full Adjustment: Allows precise vertical and horizontal alignment of the drawer front panel.

Applications for 5-9/16 in (142 mm) Height Drawers

  • KitchenPantry and Deep Pot Drawers

    Takes full advantage of the medium 5-9/16 in (142 mm) side height and heavy-duty load capacity for kitchenware.

  • WorkshopTool Storage Cabinets

    Holds heavy tools up to 88 lbs (40 kg) while pulling out completely smooth even under full load.

  • Living SpaceDressers and Credenzas

    Delivers quiet, whisper-soft closing for cabinet fronts without any distracting slamming noise.

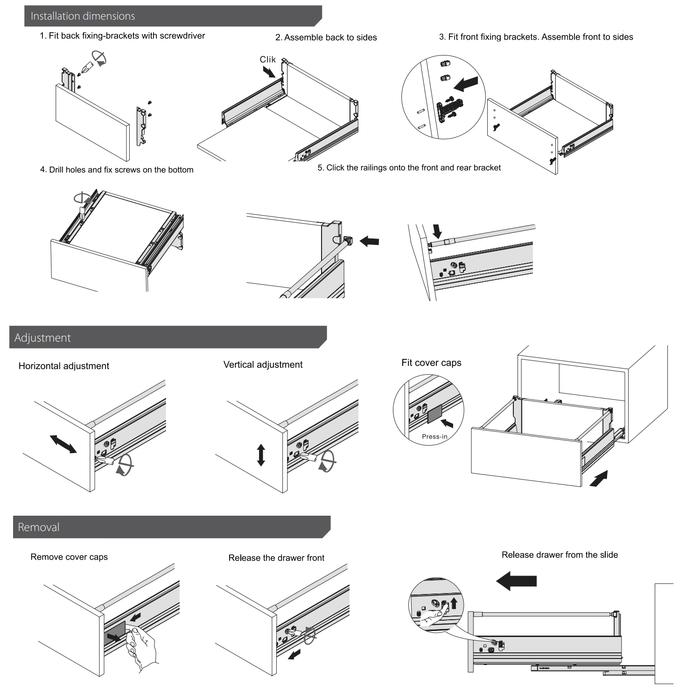

Drawer System Installation

Side rails and mounting screws are included in the set.
  1. 1
    Mount Cabinet Body Rails

    Align the side rails level inside the cabinet body and mount them securely using the provided fixing screws.

  2. 2
    Insert Drawer Box

    Place the drawer box onto the slides and push it back until it firmly clicks into place.

  3. 3
    Align Drawer Front

    Fine-tune the gap alignment directly on the slide mechanism using vertical and horizontal adjustments.
